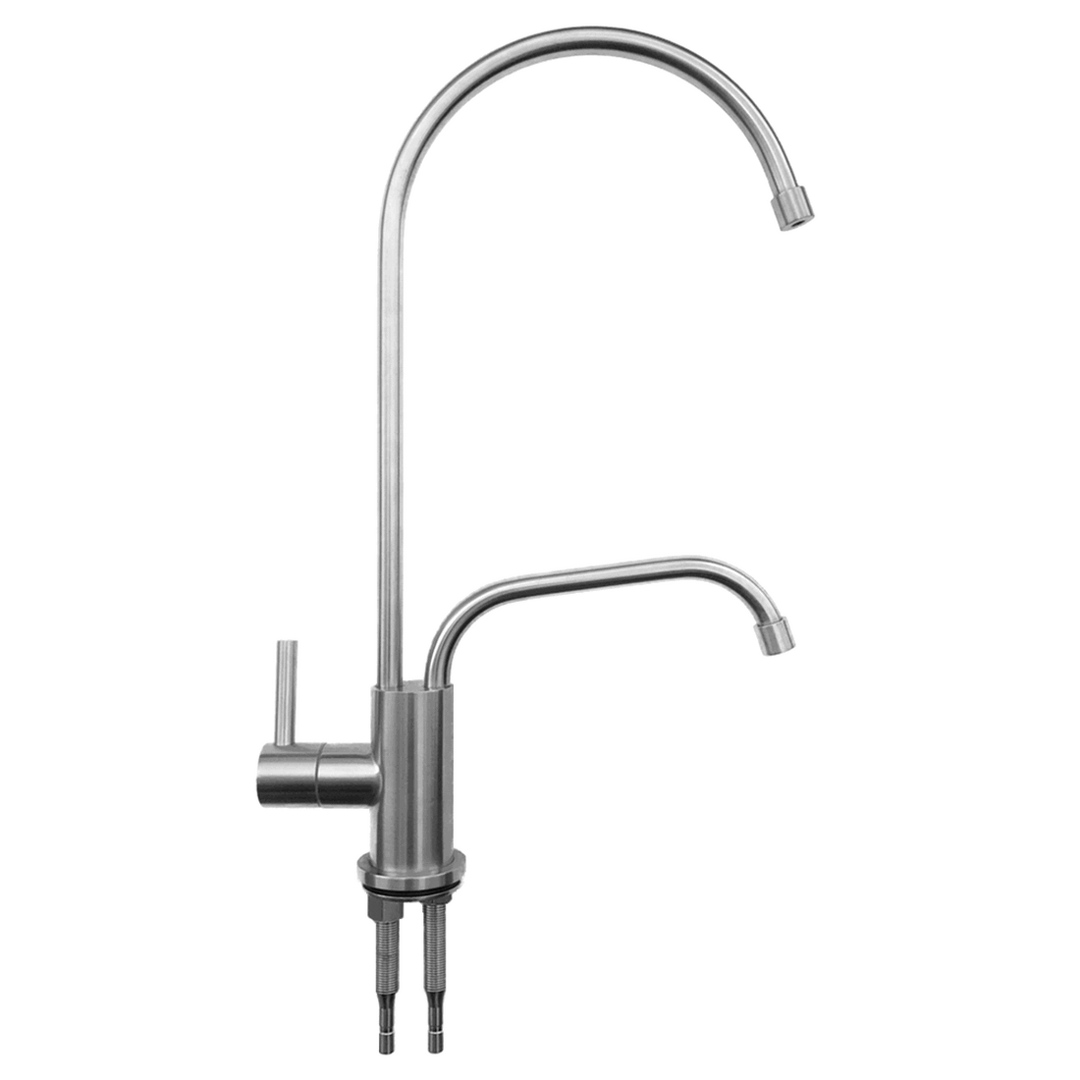

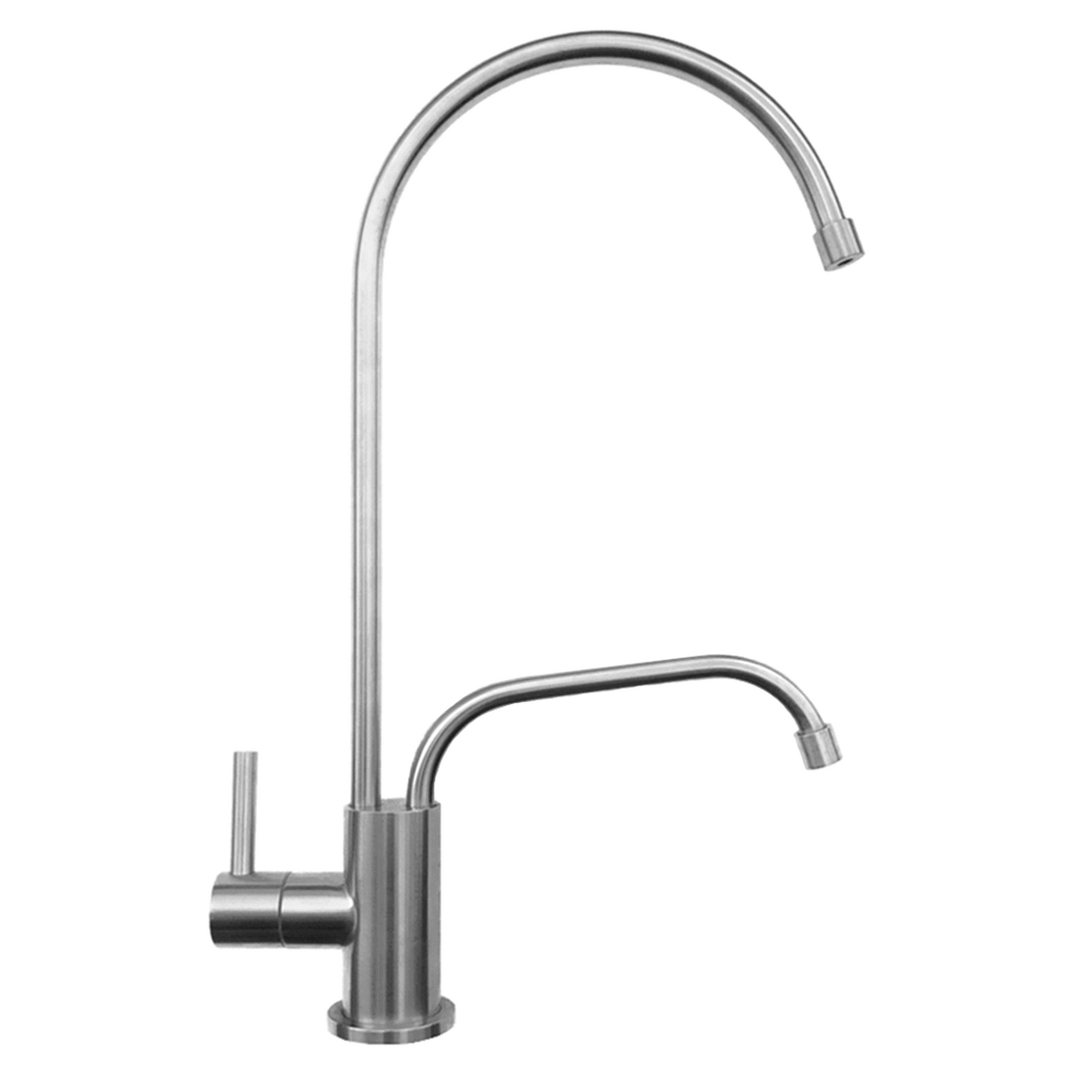

2-way stainless steel faucet

2-way faucet stainless steel osmosis faucet

The high-quality stainless steel faucet features a modern design. This osmosis faucet with two spouts is the ideal solution if you don't want to install a standard faucet for your reverse osmosis system. To avoid a permanent connection between the reverse osmosis system and the siphon, in accordance with the specifications of DIN 1988 and EN 1717, the wastewater from the osmosis system is freely directed into the sink via a separate stainless steel outlet. Hygienic compliance with the installation specifications is state-of-the-art. The stainless steel construction guarantees a very long service life and functionality. The user-friendly single-lever operation and the reliable, low-wear metal cartridge technology allow for precise water metering.

Existing reverse osmosis systems can also be retrofitted. This prevents back-contamination from the siphon into the reverse osmosis system. Another advantage of this solution is that routine checks of the water ratio between the osmosis water and wastewater can be easily performed for system monitoring . This means that calcification of the flow restrictor can be detected early, thus preventing premature wear of the reverse osmosis membrane due to insufficient flushing.

Instead of discharging wastewater, the wastewater outlet can also be used as a second reverse osmosis outlet (e.g., for mineral filters or aquariums). This allows you to draw two different qualities of reverse osmosis water . In this case, the wastewater clamp of the reverse osmosis system is installed according to the instructions.

• Two-way faucet stainless steel faucet with waste water outlet or usable as a 2nd osmosis outlet (e.g. for mineral filters or aquariums)
• swivels up to 360°
• Hygienic installation without permanent connection to the sewage system (if used for wastewater)
• high-quality workmanship, modern design
• Fitting base with seal
• hygienically separated pipe routes
• comfortable single-lever operation
• Cartridge and valve with ceramic seals
• easy self-assembly

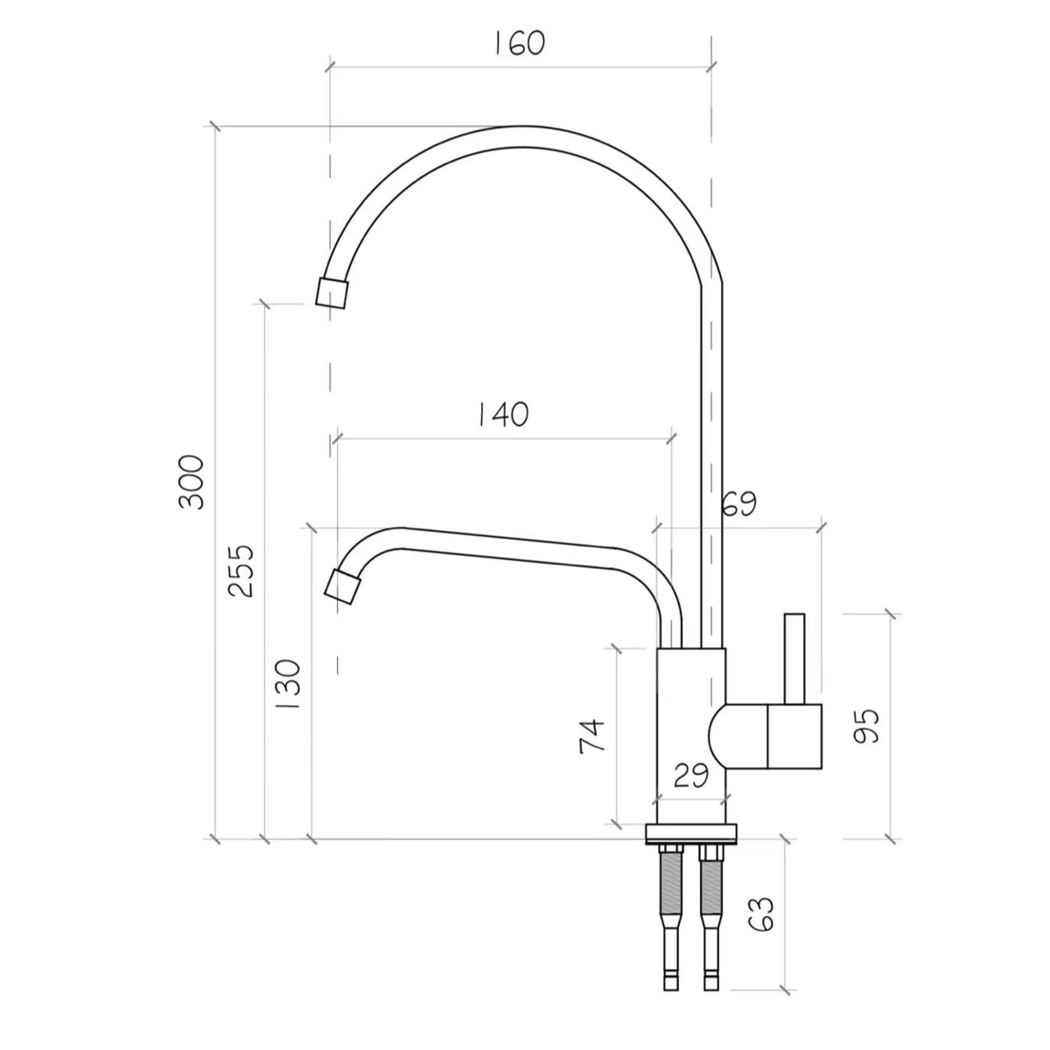

Technical data

• Material: stainless steel, SU304
• Surface: brushed
• Height: approx. 30.0 cm
• Span: approx. 16.0cm (osmosis outlet)
• Span: approx. 14.0cm (waste water outlet or as 2nd osmosis water outlet (e.g. for mineral filters or aquariums)
• swiveling pipe outlet Ø approx. 10 mm
• Spout height above worktop: approx. 25.5 cm
• Spout height above worktop: approx. 13.0 cm
• Thickness of the worktop max.: 50 mm
• Hole diameter in worktop / sink: mm
• Diameter of fitting shaft: approx. 29mm
• Diameter of fitting base: approx. 42 mm
• complete assembly set
