Atlas Filtri 3P Mono Master 20" Plus SX 3/4 inch

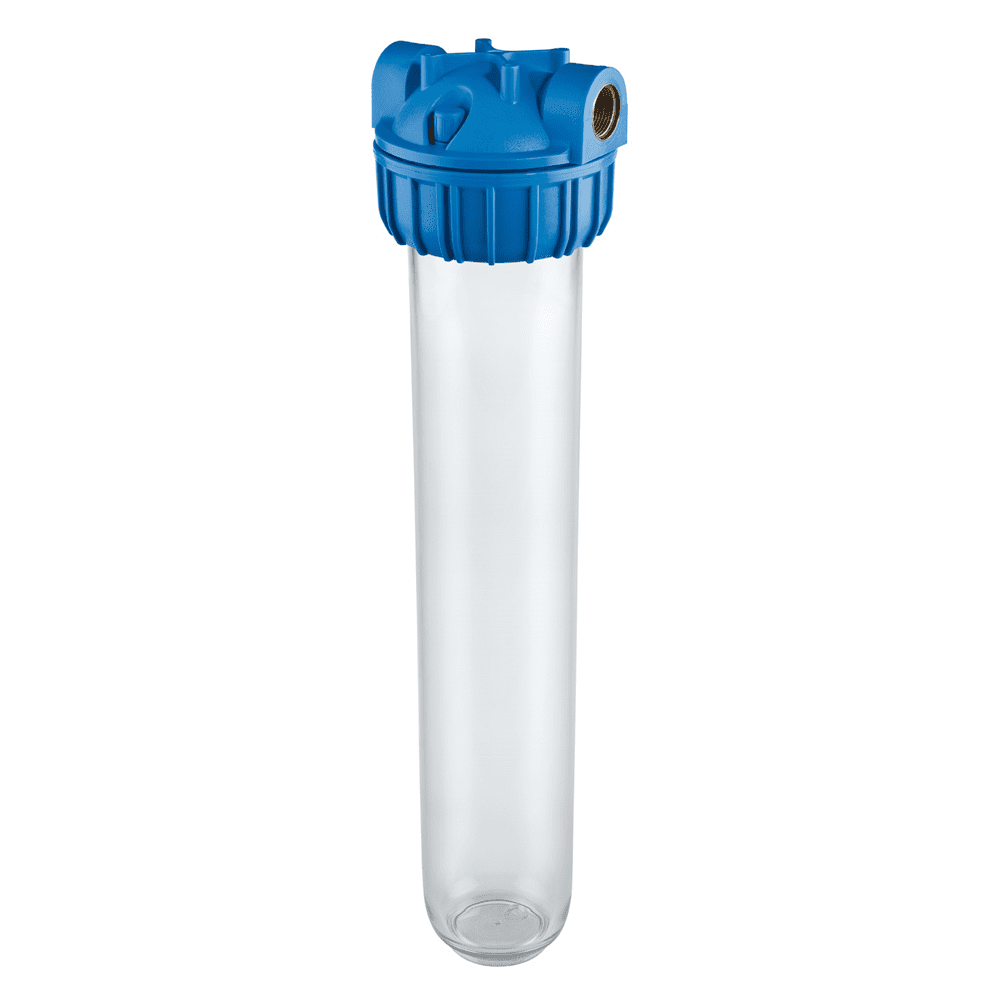

Atlas Filtri® Master Plus 3P SX 3/4" Mono Water Filter Housing

• Filtration and treatment of drinking water, domestic water , aquarium water, well water, waste water
• to protect fittings, pumps, boilers, water tanks, washing machines and other technical equipment and pipes
• Water purification, water softening, nitrate removal, iron removal, demineralization,
• Filtering of cooking oils and flavors, organic substances, solvents, insecticides, lime and chlorine removal, etc.

Technical data

• Atlas Filtri® Mono water filter housing, filter housing
• Master: Size 20"
• Connection: 3/4" IN / Out
• FO - Brass BSP* - Brass female thread, straight
• SX - suitable for SX (flat seal) filter inserts
• TS - clear filter housing cups made of PET
• Filter head made of polypropylene - patented
• Dimensions: 577 x 145 x 130 (H x W x D in mm)
• max. temperature: 45°C
• max. pressure: 8 bar
• Max. flow rate at approx. 3 bar pressure / 5500 liters / hour
• Model: RA115T411
• EAN: 8021647157331
• Made in Italy

Scope of delivery

• 1 x Atlas Filtri® Master Plus 3P AFO SX TS, 20" mono filter housing
• 3/4" IN / OUT connection internal thread on the filter head
• Delivery without accessories
• Item weight: 2 kg

Accesories

• Matching filter wrench 3P / 2P, Art. 38-2057 (please order separately!)
