Atlas Filtri Hydra 7 inch HOT 1 inch RAH 90 mic

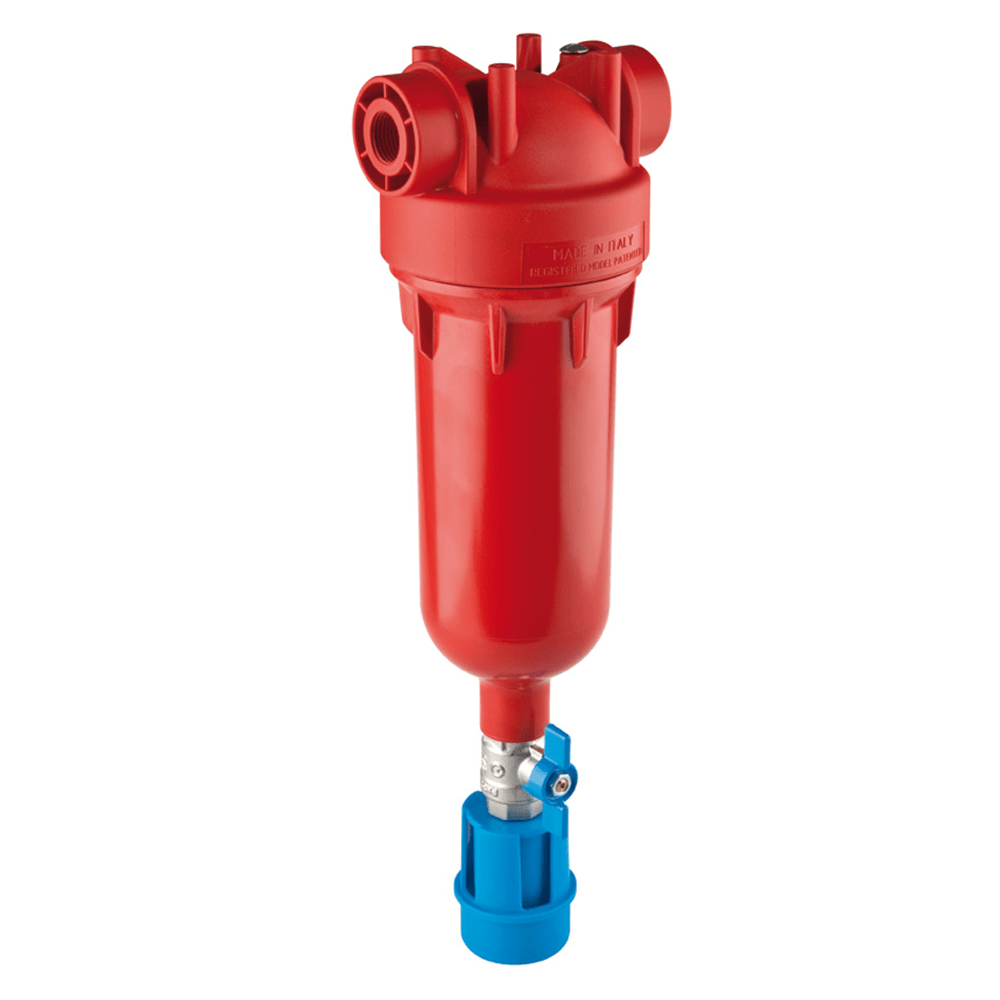

Atlas Filtri® Hydra HOT 1" RAH 90µm water filter housing

The Atlas Filtri® Hydra HOT 1" connection, 7" filter housing is equipped with a backwash function – a self-cleaning system. This filter housing is ideal for filtering tap water and hot water, for example, for heating systems. It can be installed directly, easily, and space-savingly into the water circuit of a heating system. The self-cleaning system makes the filter quick and easy to clean.

Technical data

• Atlas Filtri® Hydra HOT 1" connection with self-cleaning system
• suitable only for filter inserts SX with flat seal
• Size: 7" (for SX filter dimensions 7")
• 2 x 1" plastic internal thread connection
• Material: Housing head and filter cup made of reinforced nylon
• O-ring: EPDM
• Vent valve: stainless steel, EPDM
• Ball valve: CW 617 N nickel-plated brass, reinforced polypropylene
• Drain funnel/hose nozzle: reinforced polypropylene
• Dimensions: 390 x 120 x 107 mm (HxWxD)
• Max. temperature: 4°C to 80°C (176°F)
• Max. pressure: 1.8 to 8 bar (116 psi)
• Max. flow rate: 6000 liters per hour
• Non-toxic materials suitable for drinking water
• Easy to open, easy to close
• Fast cleaning thanks to the self-cleaning system
• Model: RA6000003
• EAN: 8021647183668
• Made in Italy

Application

• Hot water filter, heating water filter
• Filtration and treatment of drinking water, domestic water, waste water, heating water
• Also suitable for cold water, as a garden filter , pool filter , etc.
• to protect fittings, boilers, pumps, water tanks, washing machines and other technical equipment as well as pipes
• Water treatment of drinking water
• Device protection filter - installation in front of the water pump
• Building services, domestic water filters

Scope of delivery

• Atlas Filtri® Hydra HOT 1" backwash filter
• with self-cleaning system

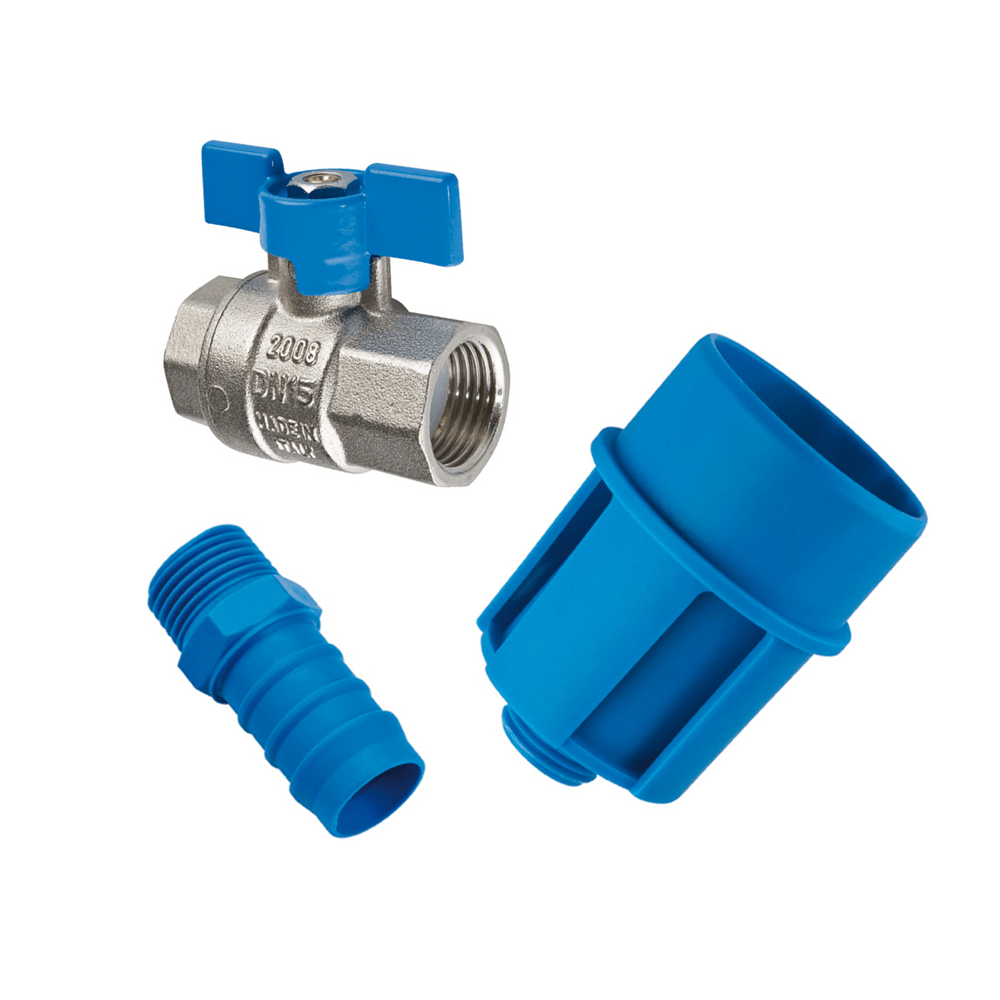

  • Drain set

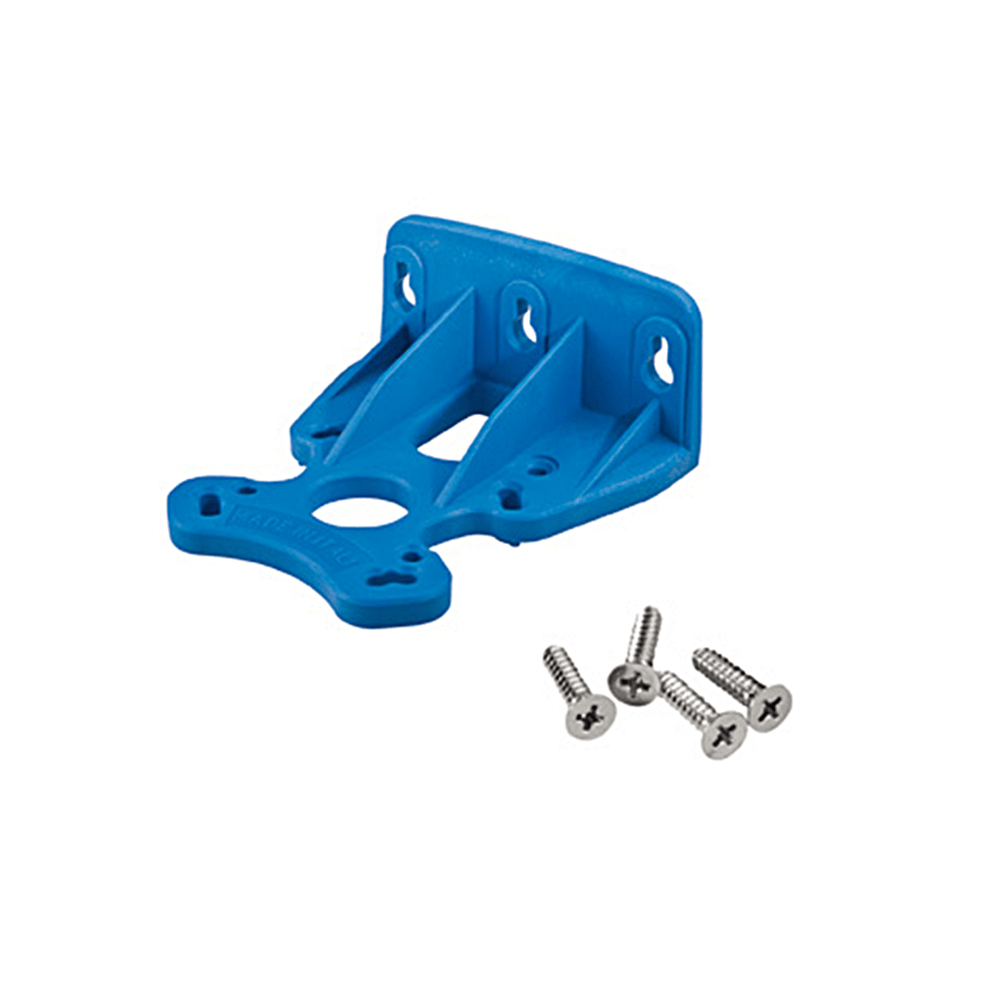

  • Mono wall bracket with fixing screws

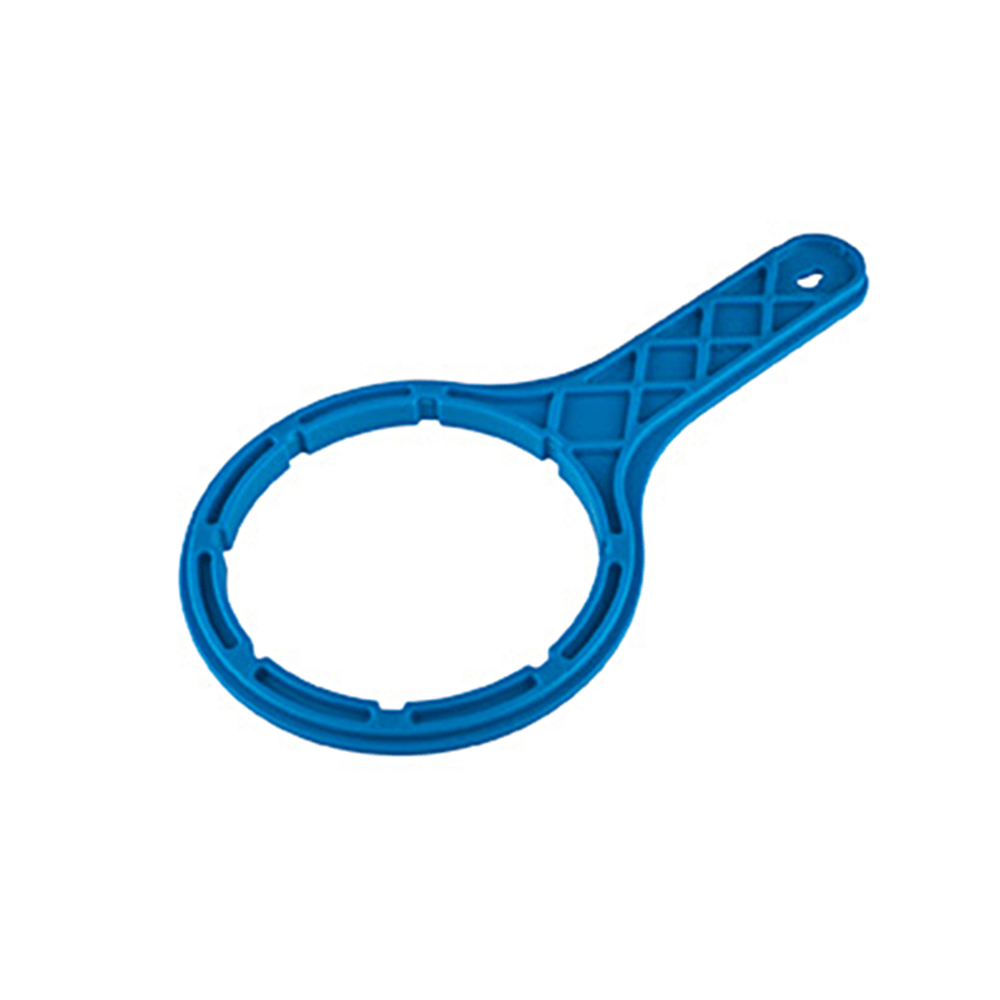

  • Housing key

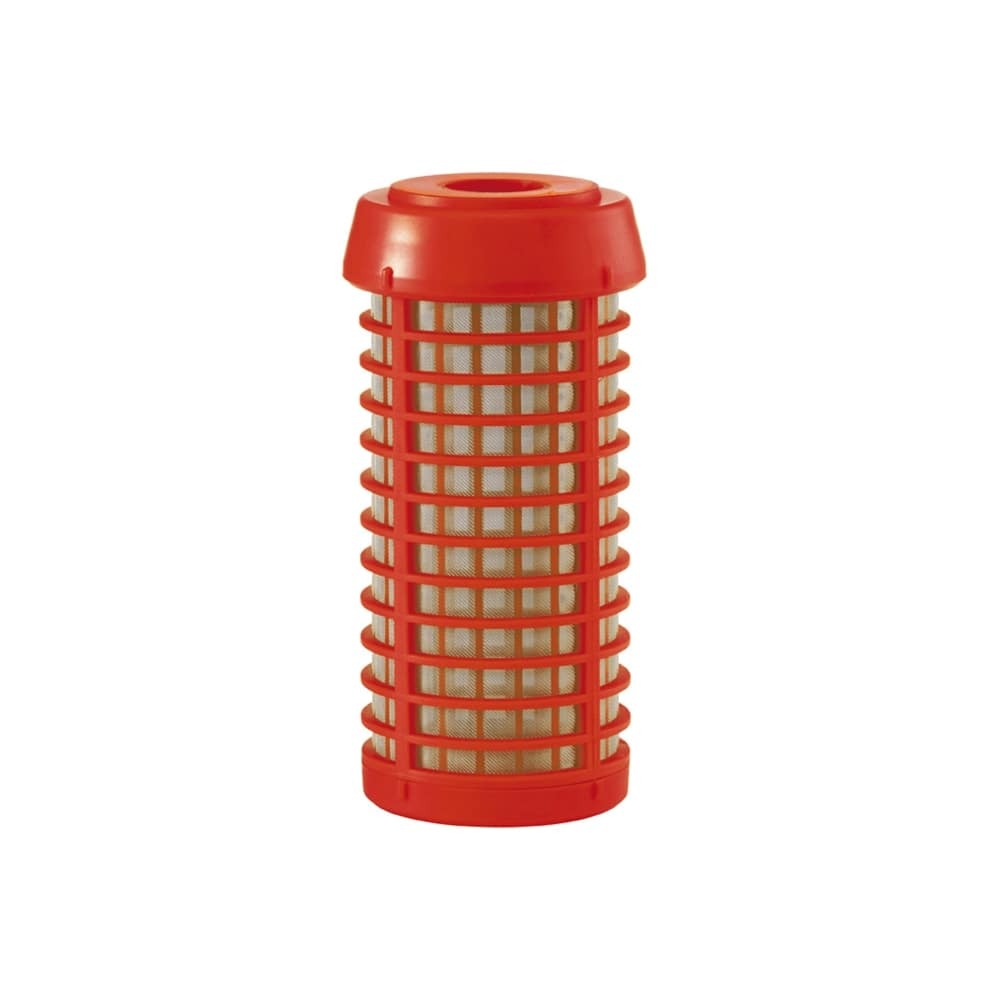

• Includes RAH 90µm 7" filter cartridge
