Atlas Filtri Hydra 7 inch RLH 90 mic

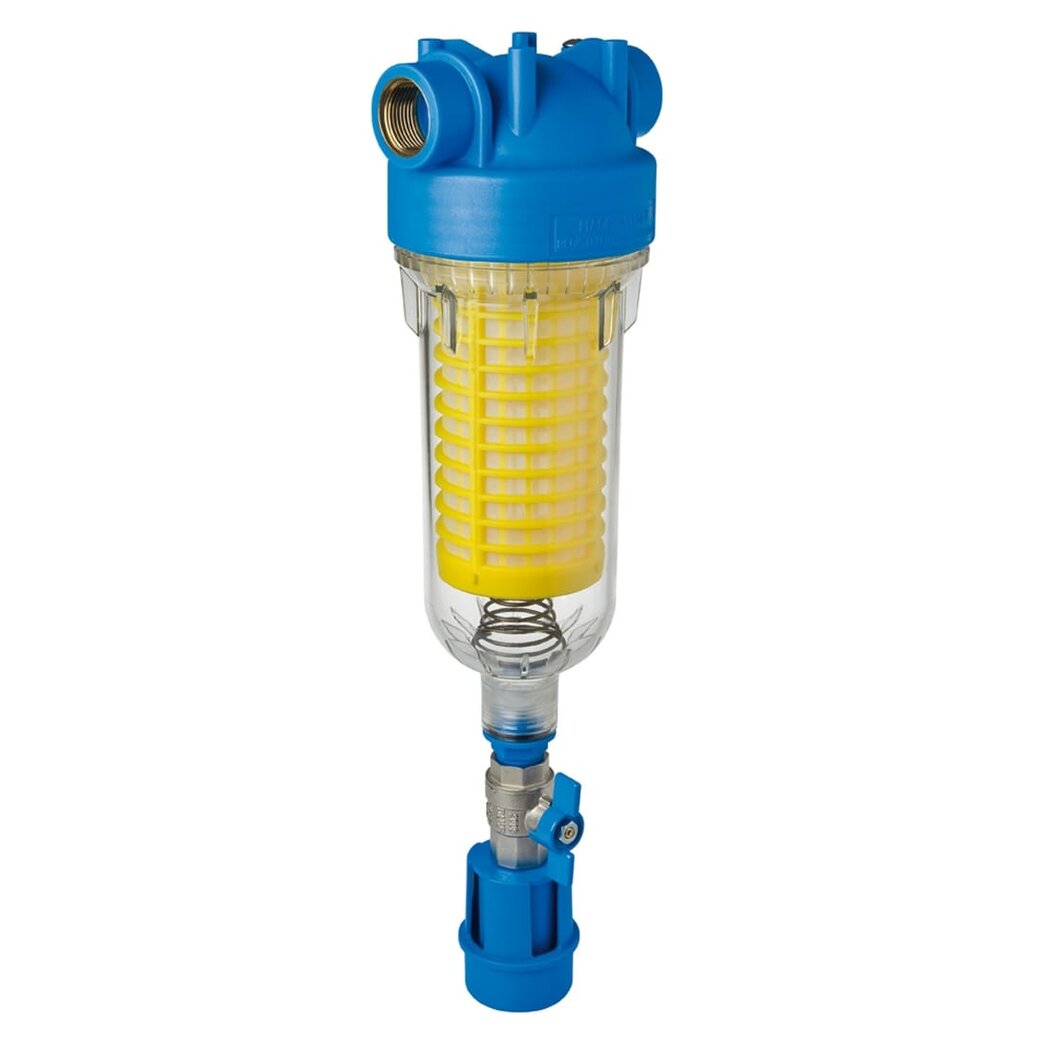

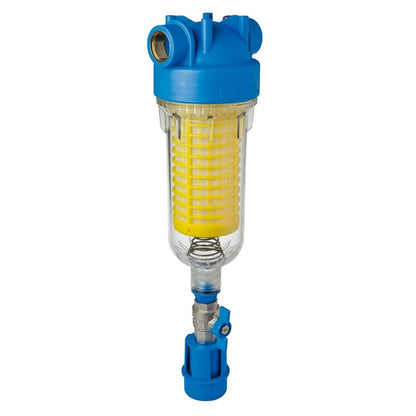

Atlas Filtri® Hydra RLH 90µm with backwash - well water filter

The Atlas Filtri® Hydra RLH 90µm water filter is equipped with a backwash - self-cleaning system.

This complete filter is ideal for filtering tap water and well water. It can be installed directly at the house water inlet or directly in front of a water pump. The self-cleaning system makes cleaning the filter quick and easy. It is one of the best home filter systems on the market. Filter your water with virtually no pressure loss! Recycling well water is an absolute must these days; clear water is a necessity for every household. Protect your equipment such as pumps and pipes. The Hydra RLH 90µm water filter is designed to deliver high water flow with low pressure loss. The Hydra water filter is capable of removing sand, suspended solids, and rust particles. The 1-stage water filter system is very space-saving and easy to install. The Hydra RLH water filter features a drain funnel/backflow protection to protect your drinking water supply.

Water connection to choose from

• 3/4" internal thread (Max. recommended flow rate 5000 l/h) -
  • Model: RB6000011
  • EAN: 4260303250175
• 1" internal thread (Max. recommended flow rate 6000 l/h)
  • Model: RA6000012
  • EAN: 4260303251097
• 1" 1/2 internal thread (Max. recommended flow rate 10000 l/h)
  • Model: RA6000023
  • EAN: 8021647125521

Technical data

• Filter housing dimensions: 390 x 120 x 107 (H x W x D)
• Connection: IN / OUT made of brass
• Maximum pressure: 8.0 bar
• Maximum temperature: 45° C

Filtration

• RLH - Pre-filtration cartridge

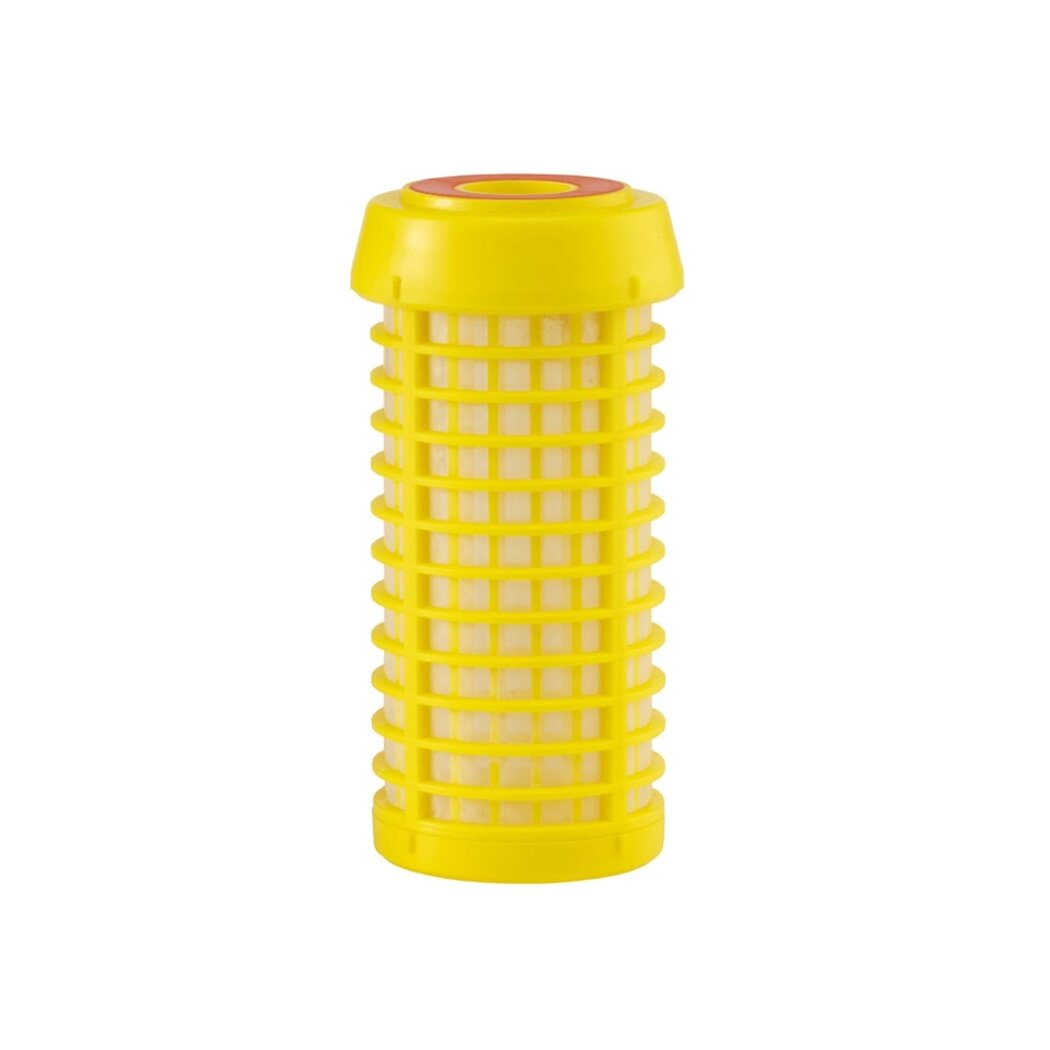

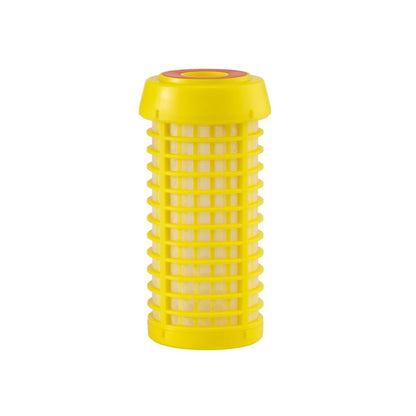

• Self-cleaning pre-filter cartridge with plastic mesh RLH: 90µm
• filter sand, rust, lime particles, scale, suspended matter, fine particles up to 90µm
• Lifespan: approx. 12-24 months
• 7" filter dimensions: 173 x 70 x 30 mm

Application

• Water treatment of drinking water
• Pre-filtration, water filter for well water, groundwater, wastewater
• Garden filters, cistern filters, sand filters, pump pre-filters
• Device protection filter - installation in front of the water pump
• Building services, domestic water filters
• to protect washing machines and other technical equipment and pipes
• Installation: directly at the house water inlet or directly behind the water pump
• Device protection filters, protection of fittings, boilers, pumps, water tanks

Instructions for use

• Please open the drain valve of the Hydra filter slowly, as the filter cartridge may burst due to the very high water pressure.
• If the drain valve is opened too quickly, the cartridge will hit the bottom very hard and may crack if cleaned frequently.
