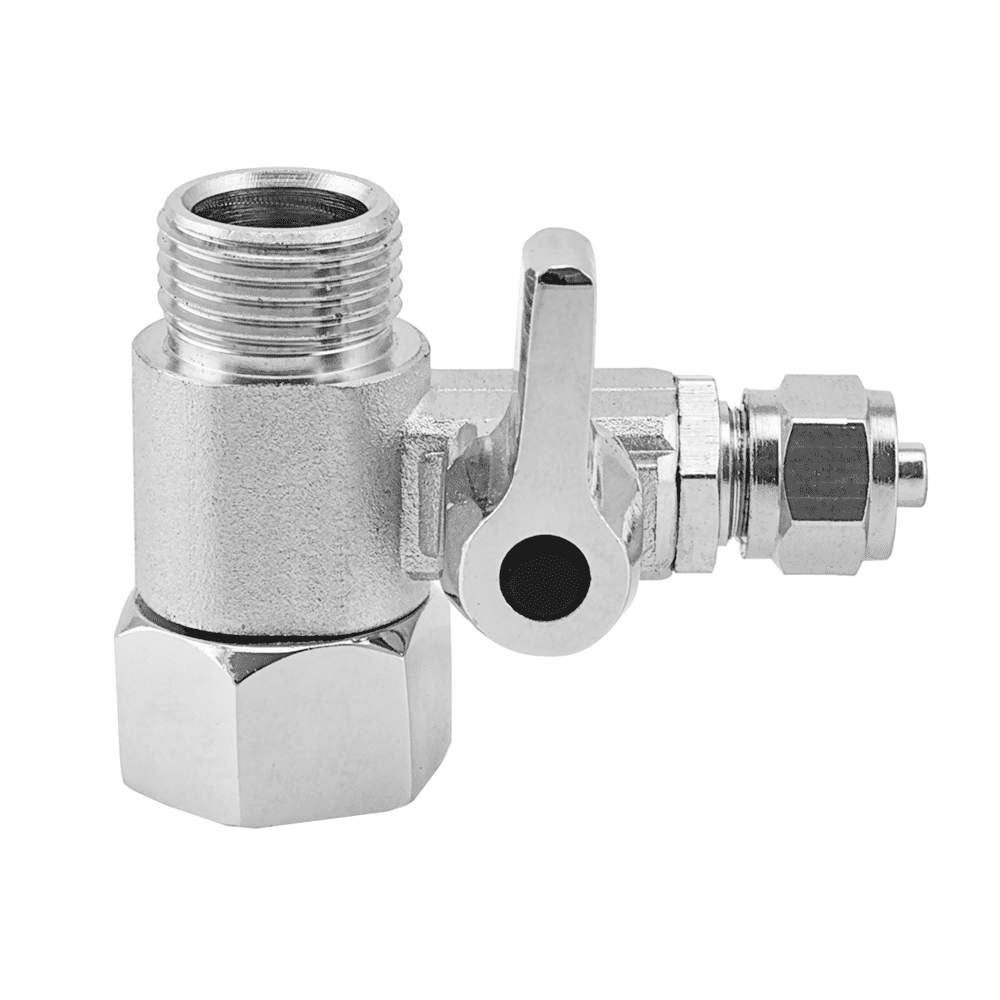

Angle valve connection 3/8" IG x 3/8" AG x 3/8"

Angle valve connection 3/8" IG x 3/8" AG x 3/8" - water connection

• Angle valve connection 3/8" with shut-off valve, T-piece
• Installation for the water connection to an angle valve
• for opening and closing the water supply
• Water connection adapter with 3/8" hose connection

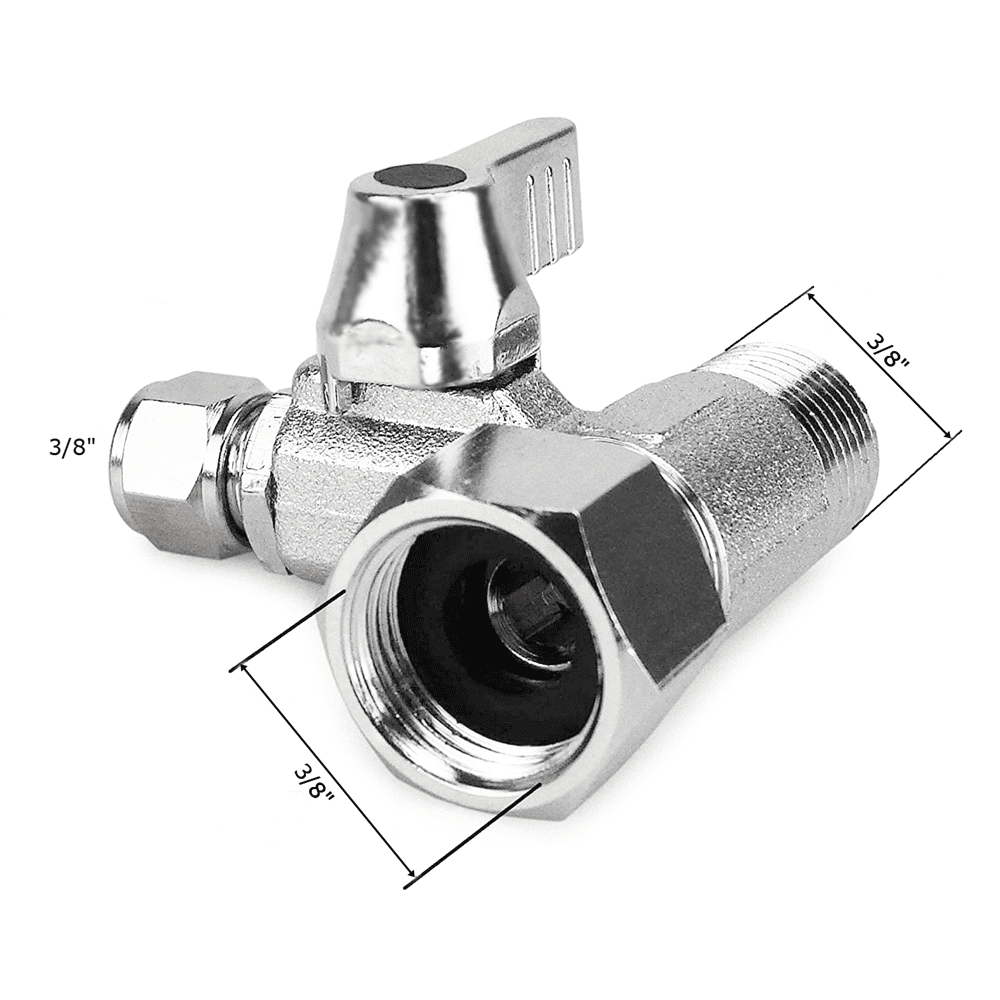

Connection

• top: 3/8" male thread
• bottom: 3/8" internal thread
• left: 3/8" ( for Ø hose 9.525 mm = 3/8")
• Connection: IN / OUT 3/8" thread
• Hose connection: 3/8" plug with union nut
• Dimensions: 46 x 56 x 35 (L x W x H in mm)
• Item weight: 104g

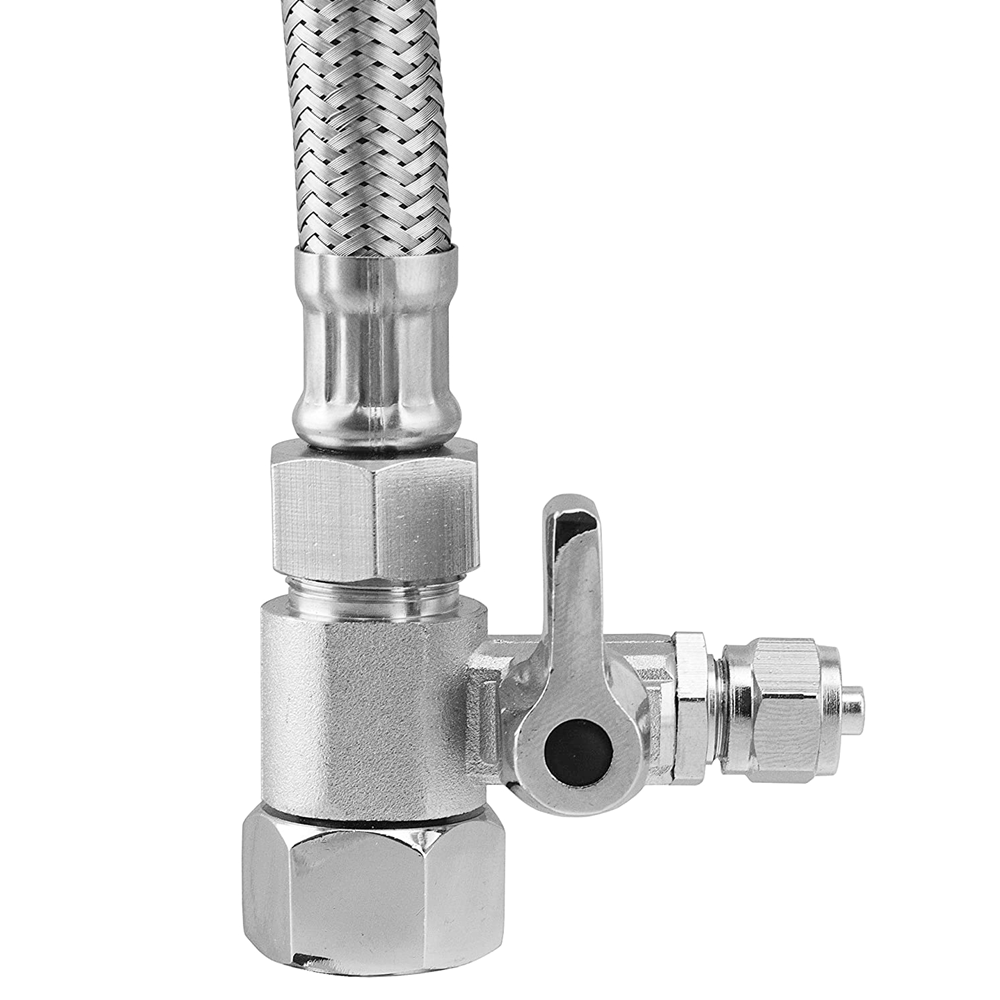

The 3/8" angle valve connector with shut-off valve serves as a T-piece connector and has a 3/8" internal thread with a seal and a 3/8" external thread. This water connection fits any 3/8" angle valve under your sink. This angle valve water connection is suitable for reverse osmosis systems with a 3/8" water inlet hose. The connection can be connected directly to the angle valve without Teflon tape. The external thread is simply connected to your faucet's flexible hose.

This water connection replaces the 3/8" connector (Art. 30-2030) and the conventional 3/8" shut-off valve (Art. 30-4075).
