400 GPD Professional Brushless 1:1 - 3013

400 GPD Professional Brushless 1:1 - 3013 – Reverse Osmosis System

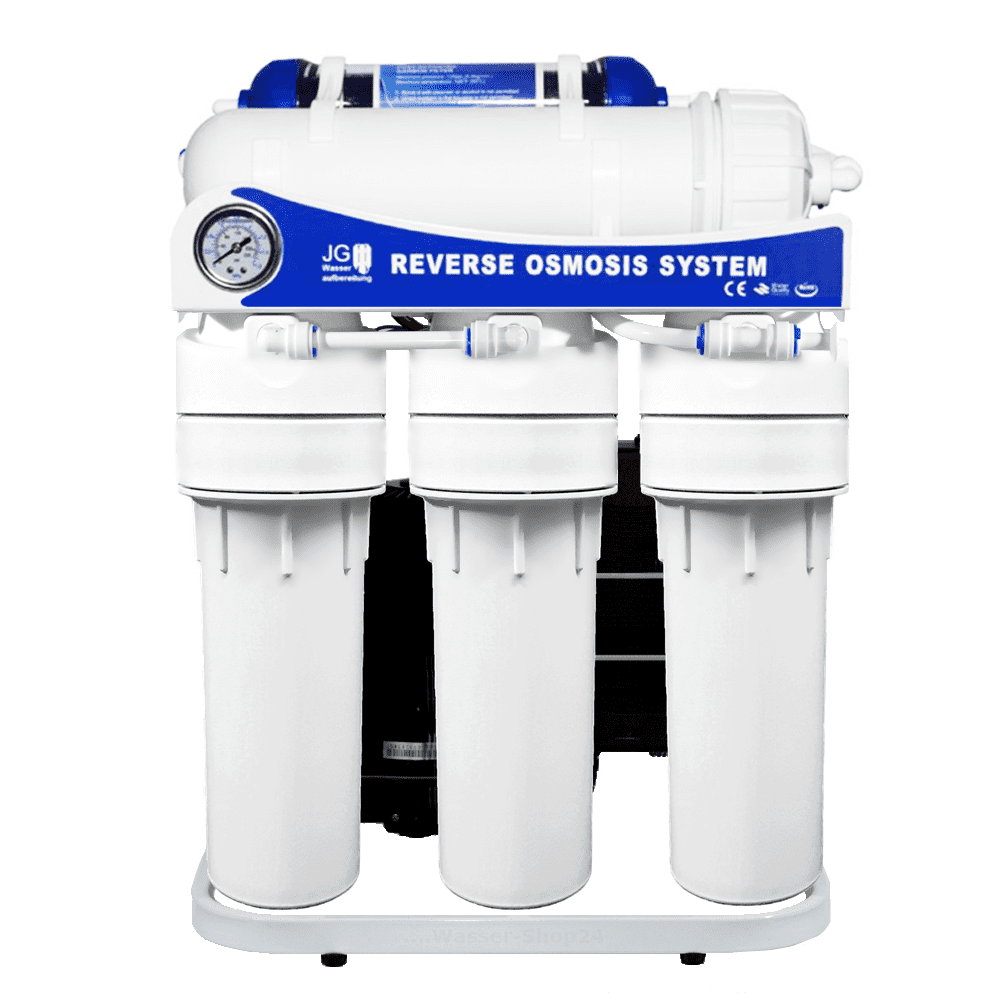

This 400 GPD Professional Brushless reverse osmosis system is ideal for any home, office, or aquarium, and can also be used commercially. The integrated pressure gauge displays the current water pressure and the operating pressure when the system is operating. The system produces reverse osmosis water directly and quickly through the 400 GPD membrane, with a pure water output of approximately 1520 liters per day*, eliminating the need for a tank. The Directflow 400 GPD Professional Brushless reverse osmosis system fits comfortably in the kitchen sink cabinet. However, the system can also be installed elsewhere.

Combi filter housing

The 400 GPD Professional Brushless Reverse Osmosis System is equipped with three combo filter housings. The combo filter housings in the pre-filter area combine a standard 10" filter housing with a quick-change filter housing. This new combo quick-change filter housing can be opened like a standard filter housing, allowing the filter media to be individually loaded and easily replaced. It's easy to use.

• 400 GPD membrane (black)
• Up to 1520 liters of daily output* possible (at 20°C water temperature)
• approx. 0.8 liters - 1.0 liters / minute*
• No storage tank required, ideal for small spaces
• Dimensions of the system: 38 x 22 x 52 (LxWxH / in cm)
• Osmosis water / wastewater ratio: 1 : 1 - optimal membrane flushing
• Power connection required
• powerful, quiet booster pump 24V/DC - 3.5A
o Model: ZS-DRO-B400G (improved booster pump)
o Special 400 GPD booster pump with brushless motor
o This new booster pump has no carbon brushes installed in the motor.
o The engine will last longer as there will be no more wear and tear.
o The pump head is also replaceable.
o Running time max. 12 hours continuous operation, followed by 30 minutes cooling down
o Service life up to 2000 operating hours when interval use is observed
• 1 transformer Erp 2 compliant - max. 0.5 watts in standby mode, 100V-240V / 50/60Hz / 24 V, 5A
• Automatic flushing valve combined with flow limiter (max. 1100 ml/min), independently flushes the membrane for max. 18 seconds before each use of the system, for a long service life of the membrane
• two solenoid valves (one disconnects the device from the mains water network in the event of a power failure and the other serves as a wastewater backflow stop)
• Check valve on the osmosis water side as germ protection and for optimal function
• Incl. pressure gauge - shows the inlet pressure
• with pressure gauge shut-off valve
• Integrated automatic switch-off via integrated high and low pressure switches
• 3 high-quality combo pre-filter housings, color white
• Reinforced membrane housing 3013 for 400 GPD membranes with quick connectors, 360° rotatable
o Please note when ordering accessories, e.g. mineral filter: The connection set for inline filter 3" x 2", Art. 37-2102 fits here
• Recommended filter change: every 6 months* according to DIN
• Recommended membrane replacement: every 2 years*

• 400 GPD Professional Brushless Reverse Osmosis System
• Filter set, 10" (25.0 cm) depending on selection:

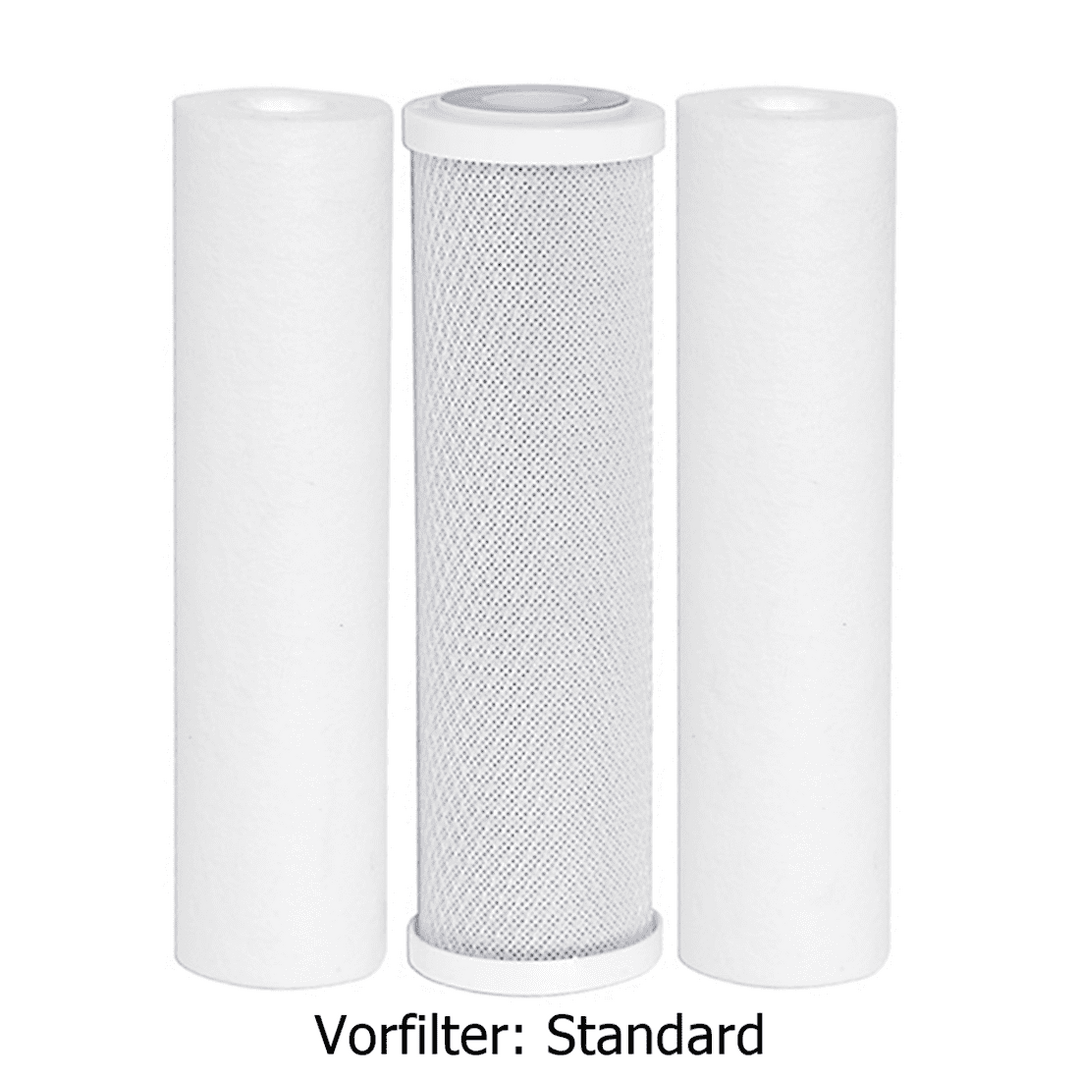

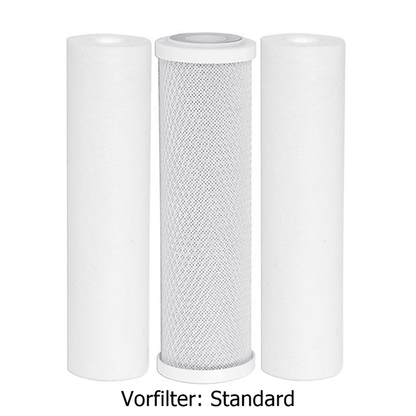

o Standard filter set

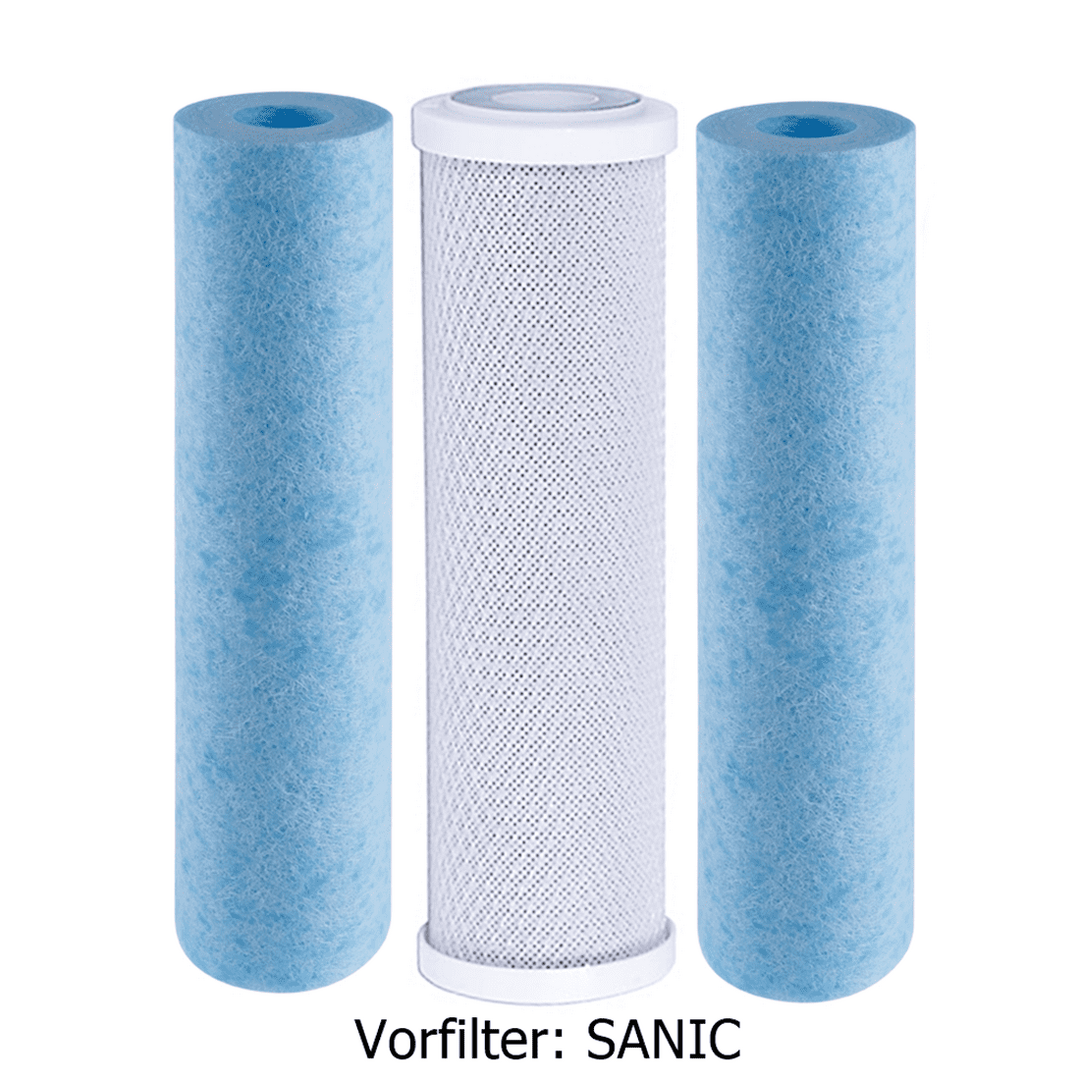

o Sanic® filter set with Microban®

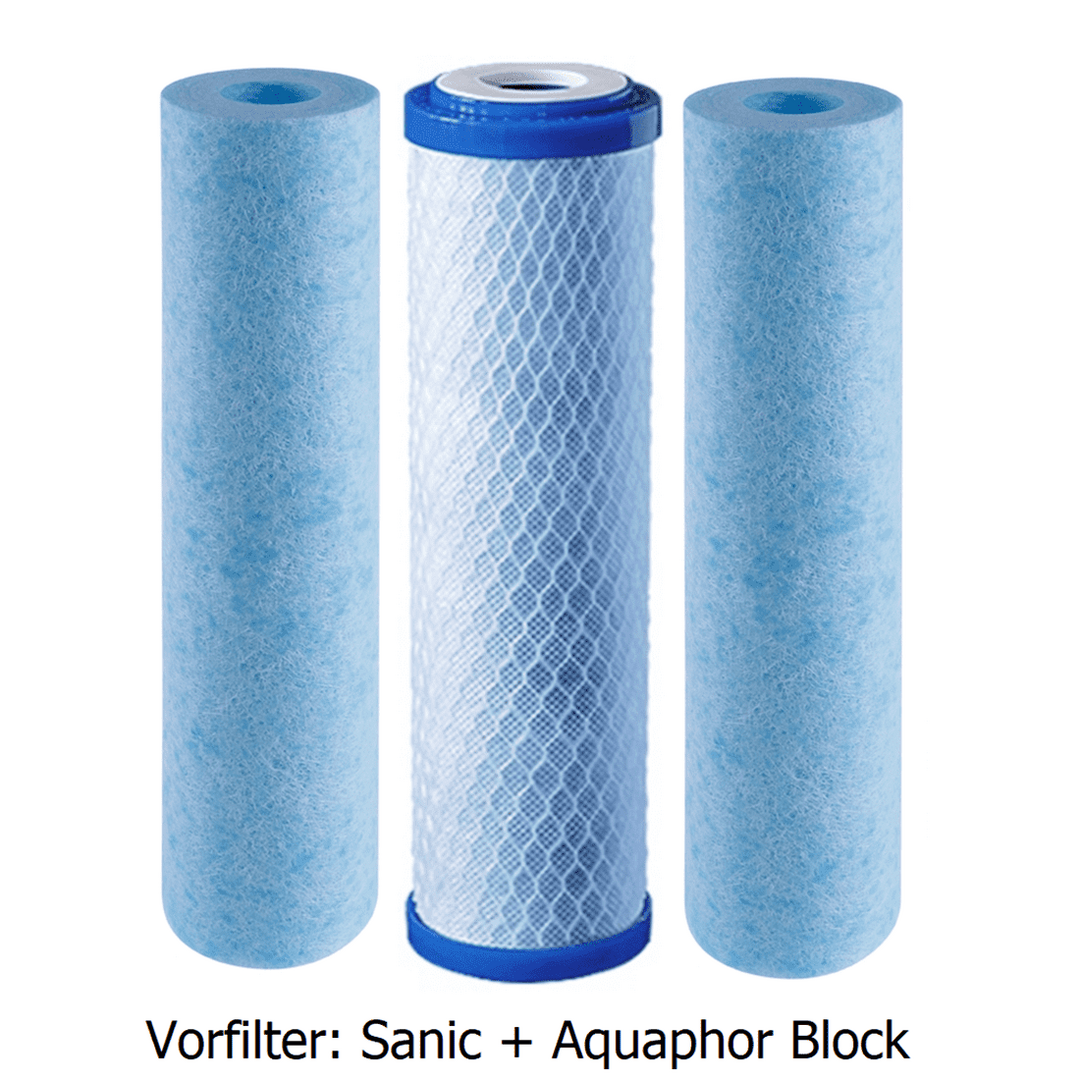

o Sanic® Filter & Aquaphor® Activated Carbon Block 5µm

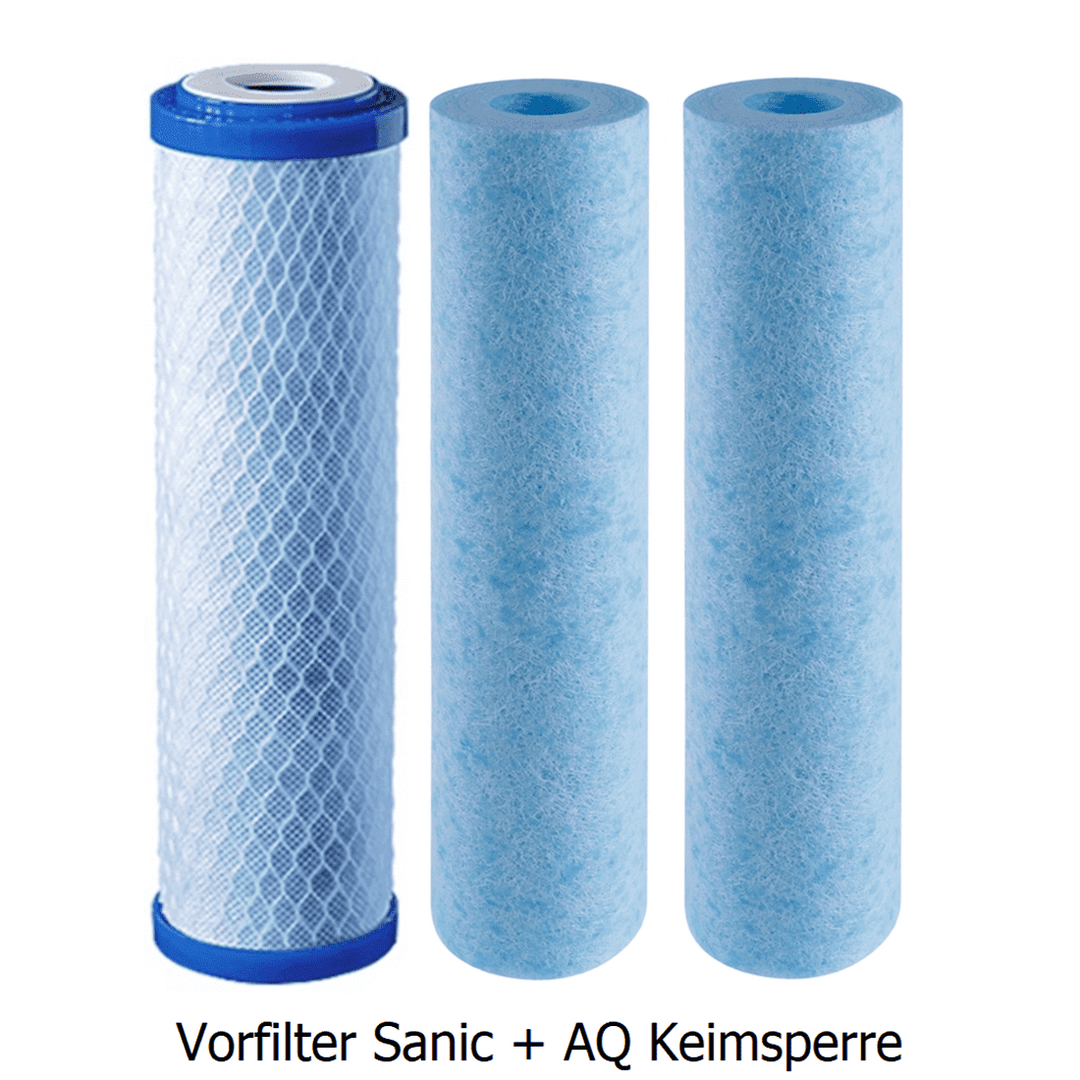

o Sanic® Filter & Aquaphor® activated carbon block 5µm + hollow fiber membrane 0.1µm (germ barrier)
• Faucet, depending on selection:

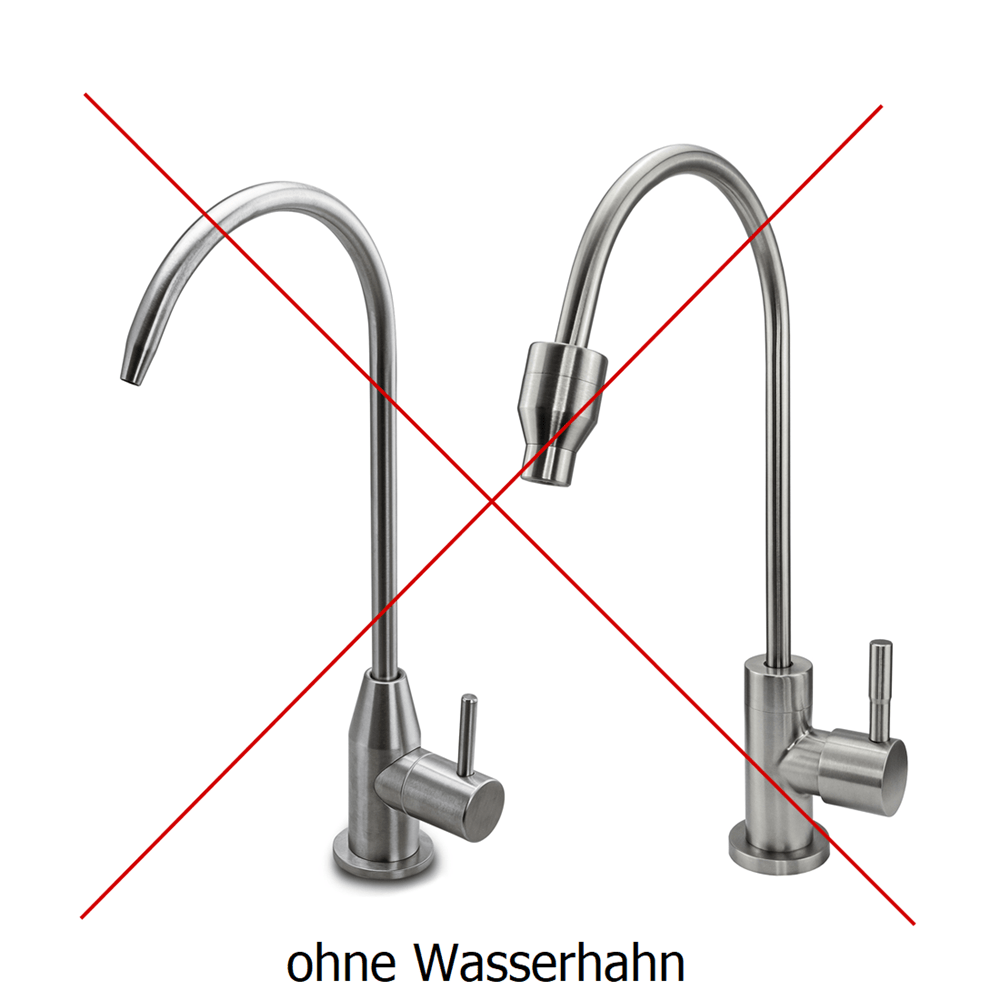

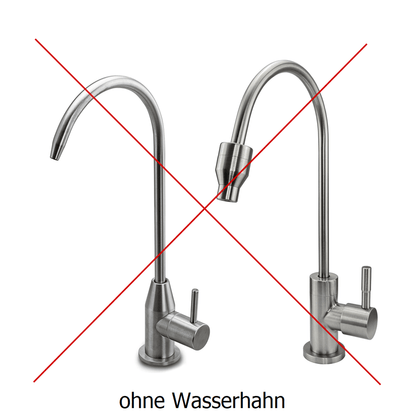

o without tap (+0.00€)

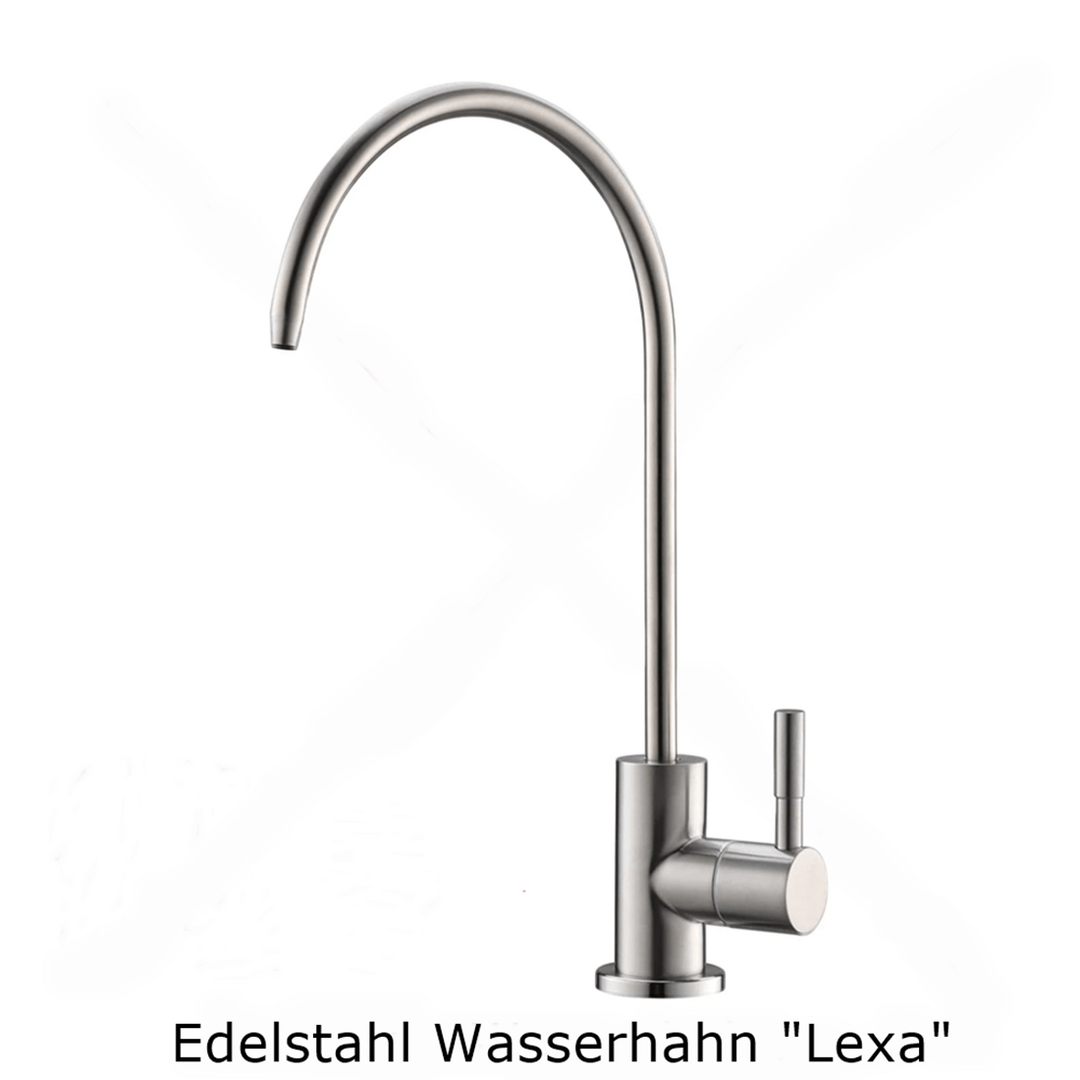

o Stainless steel faucet, model: Lexa, brushed (+0.00€ instead of 24.97€)

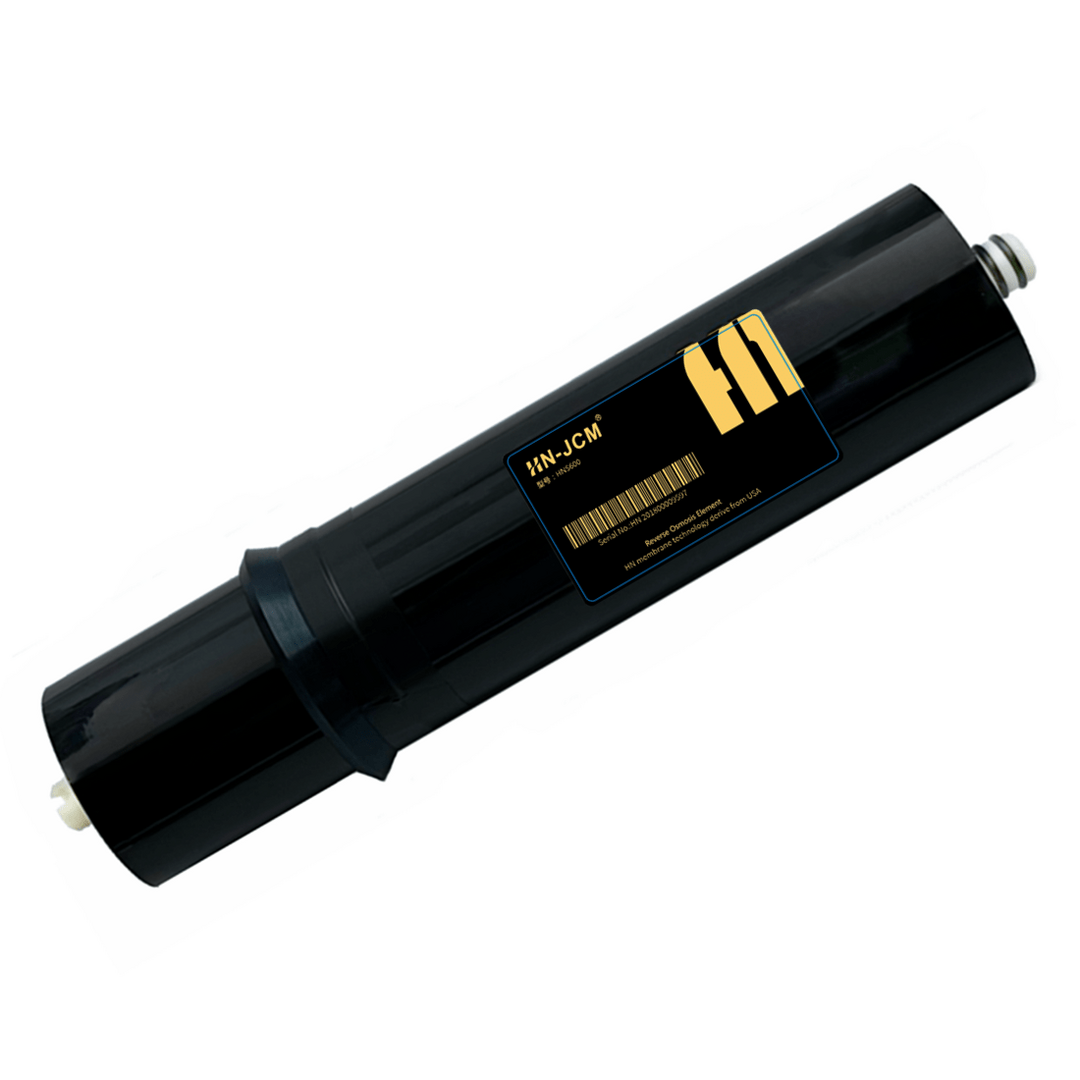

• high-quality TFC membrane 400GPD, Model: 3013-S400
• Integrated brushless booster pump for optimal performance
o Model: ZS-DRO-B400G, 24V, 3.5A
• 1 transformer Erp 2 max. 0.5 watts

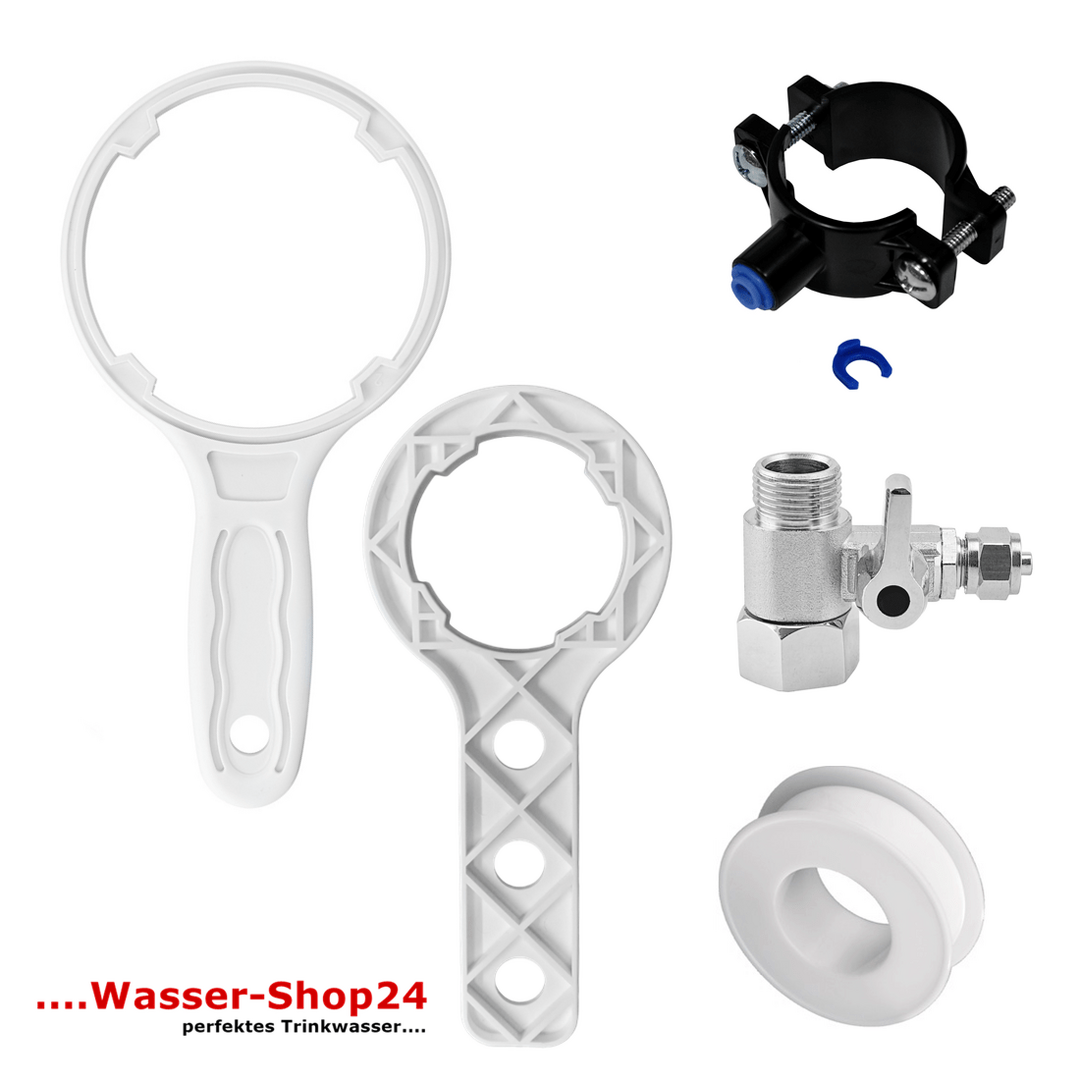

• Filter wrench and membrane wrench
• Hose lines in 3/8" (9.525 mm) and 1/4" (6.35 mm) size
• Complete connection and installation set including Teflon tape
• Water connection adapter 3/8" with integrated shut-off valve (water supply)
• Detailed installation instructions in German
