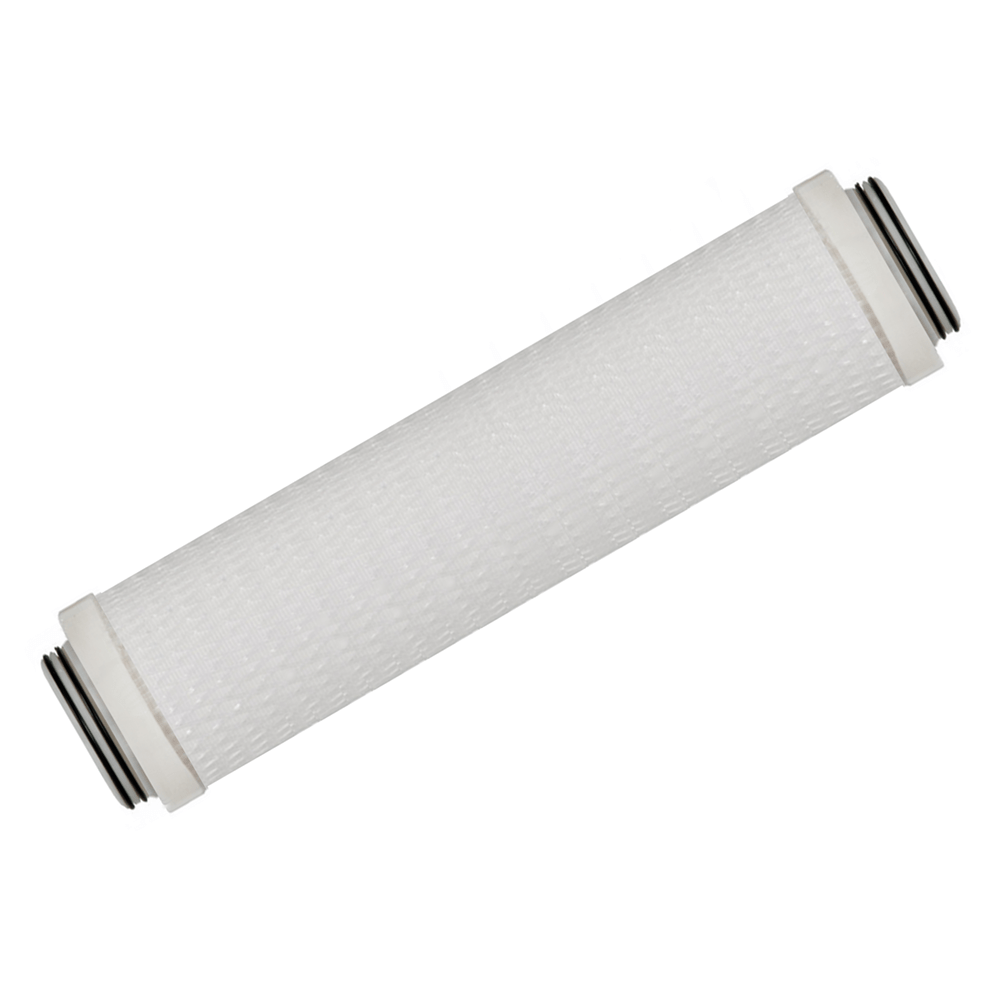

500 GPD Side Stream Membrane

500 GPD Side Stream Membrane - Osmosis filter

• Model: TFC 3013-500 Side Stream
• Size: 500 GPD (up to 1892 liters daily output)
• Powerful & durable Side Stream TFC reverse osmosis membrane
• extremely water saving with a ratio of 1 : 1
• Pore ​​size only 0.0001µm
• Working temperature: +5°C to +38°C
• suitable for all Side Stream systems 500 GPD
• fits only in a Side Stream membrane housing
• Dimensions approx.: length 34 cm x Ø 7 cm
• Lifespan approx. 3 - 5 years²
• Brand: JG for Side Stream Systems
• Item weight: 800g

²depending on raw water quality and filter performance.

Filtration

Removes virtually all harmful substances and flavors, such as viruses, bacteria, germs, hormones, arsenic, lead, uranium, pesticides, herbicides, fungicides, drug residues, limescale, and virtually all other contaminants. Only a TFC membrane can remove these contaminants from water.

Flow restrictor: For the 500 GPD side stream reverse osmosis membrane, a Flow 1200 flow restrictor is recommended.

installation

• Please do not drop the membrane!
• Remove the 500 GPD Side Stream Membrane from the transparent protective film and grease all seals, including the seal on the membrane housing. We recommend Diamant Silicone Grease Type 1; it's white-transparent, non-toxic, and odorless, making it ideal for installation in drinking water applications.
• If necessary, lift the membrane housing out of the membrane clamps and place it upright.
• Pay attention to the flow direction of the membrane. You can identify this by the arrow on the label.
• Now slowly and carefully insert the Side Stream membrane from above with the four rubber seals in front, applying slight pressure, into the housing until it stops.
• Reattach the diaphragm housing to the retaining clips and close the diaphragm housing cover using the diaphragm wrench. Done!

Notes: The Side Stream Membrane is factory-packaged in a transparent protective film/hygienic protection film. Opening this protective film constitutes a binding purchase. Returns are no longer possible once opened.
